Product introduction

Parameter

Number	Name	Model	Remark
1	Bed	ML-P6020D-BP	Herolaser
2	Feeding system	Manual/automatic feeding (optional)	Herolaser
3	Blanking system	Fixed and adjustable blanking	Herolaser
4	Numerical control system	FRIENDESS	China
5	Chuck	Standard with 2 chucks (full stroke jaw of front chuck)	China
6	Servo system	Fuji Electric	Japan
7	Gear and rack	APEX/YYC	Taiwan China
8	Linear guide rail	HIWIN	Taiwan China
9	Reducer	TOMOGAWA	Japan
10	Laser source	3000W	MAX
11	Cutting head	OSPRI	China
12	Cooling-water machine	Teyu	China
13	Pneumatic components	SMC, AirTAC	Japan/Taiwan China
14	Electrical components	Schneider or equivalent	France

Number	Name	Parameter
1	Model	ML-CP-6020D-BP
2	Laser power	3KW
3	Chuck clamping range	Φ20mm~Φ220mm, □20~□150
4	Maximum single pipe weight	40kg/170kg
5	Feeding length	≤6300mm(automatic feeding)
6	Blanking length	≤2500mm(length customizable)
7	Cutting thickness (related to laser power)	carbon steel≤18mm ；Stainless steel≤8mm； Aluminum≤6mm；Brass≤5mm；
8	Positioning accuracy	≤±0.03mm
9	Repeat accuracy	≤±0.02mm
10	X-axis maximum speed Y-axis maximum speed Z-axis maximum speed B-axis maximum speed	≤100m/min ≤100m/min ≤65m/min ≤100RPM
11	Idle running acceleration	1.0G
12	Power demand	AC220V±5%/50Hz
13	Power consumption	6KW-25KW
14	Dimension	1100052002400(mm)
15	Weight	About 7800KG
16	Graphic file format	dxf

Products Description

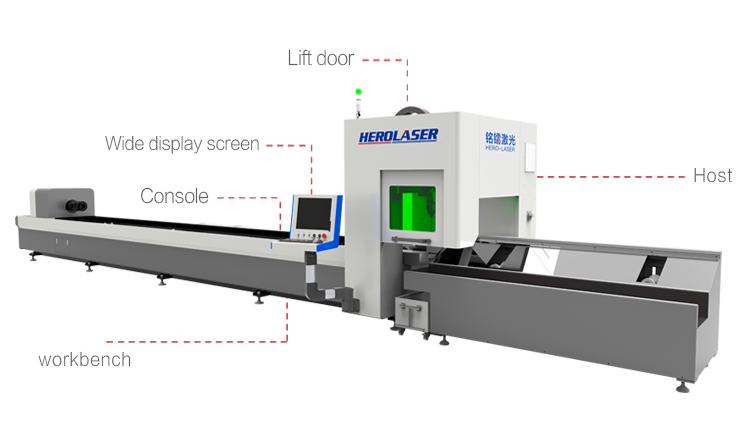

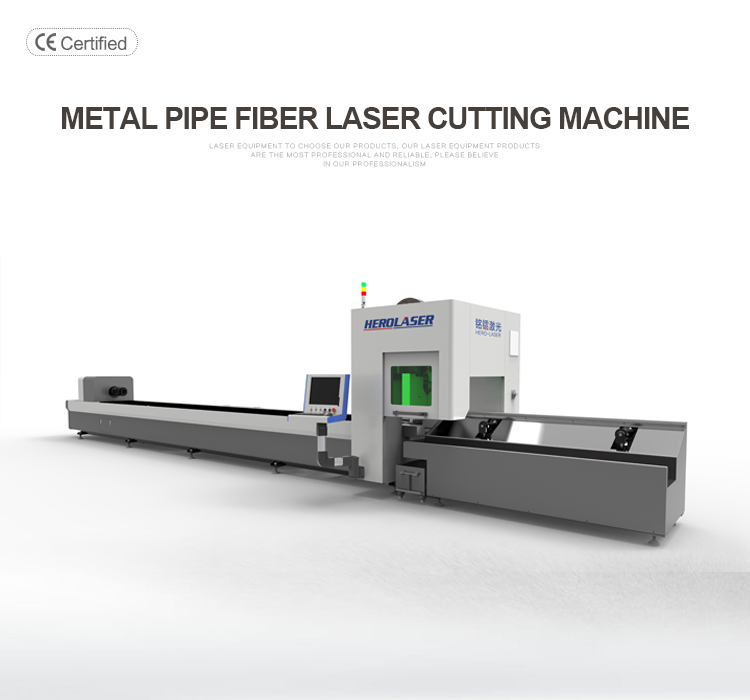

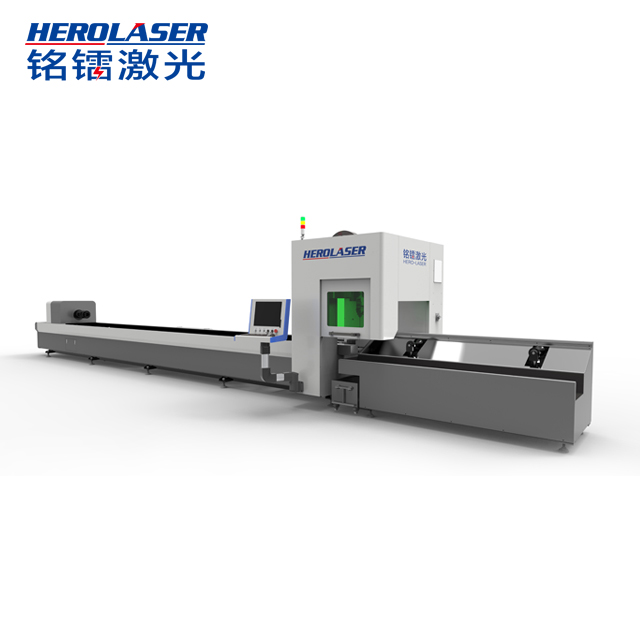

Standard 6m Optical Fiber Laser Pipe Cutting

ML-P6020D laser pipe cutting machine is a standard optical fiber laser pipe cutting machine developed by Herolaser. It adopts long-term stable and reliable advanced medium and high-power optical fiber laser, selects high-precision gear rack, imported high-precision linear guide rail and other high-efficiency transmission components, and is a precision CNC automatic laser pipe cutting machine assembled through WEIHONG professional pipe cutting control system. It is a high-tech product integrating the latest laser cutting, precision machinery, numerical control technology and other disciplines. It is mainly used for cutting metal pipes such as carbon steel pipe and stainless steel pipe (square pipe, round pipe and rectangular pipe). It is a useful cutting tool in the metal pipe processing industry. The bed adopts horizontal gantry structure and combined transmission mode of gear rack and screw. Transmission components such as reducer, guide rail and gear rack are well-known brands. It has the characteristics of stable structure, good rigidity, light weight and high dynamic response. It is a professional laser pipe cutting machine with high efficiency, precision and stability.

Characteristics

Small Investment High Return

The cutting section is smooth without burr, slag, blackening and yellowing, which can accurately realize the cutting of various complex graphics

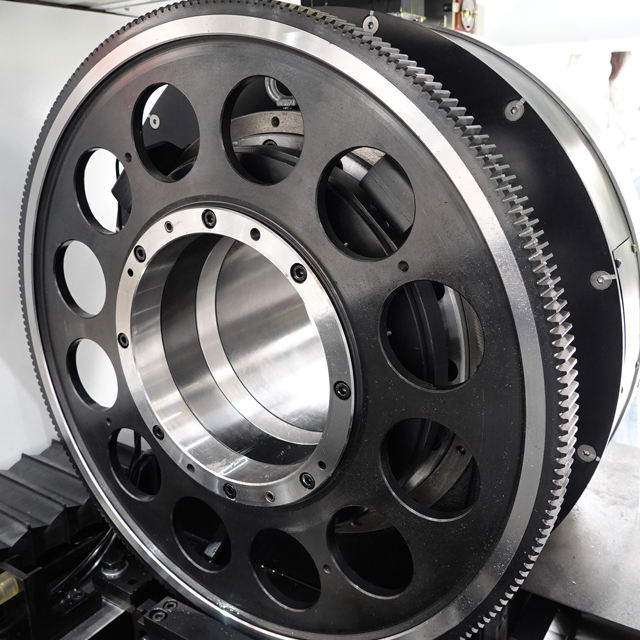

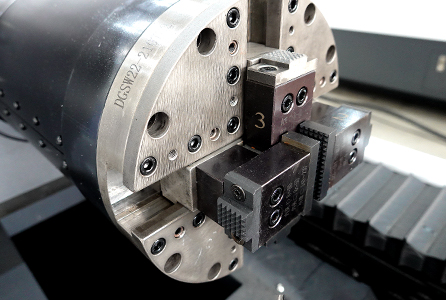

Pneumatic Chuck - labor saving and production increasing

Pneumatic clamping, large and stable clamping force to ensure high-precision cutting;
Special support frame can avoid pipe sagging and deformation, improve cutting accuracy and prolong the service life of chuck

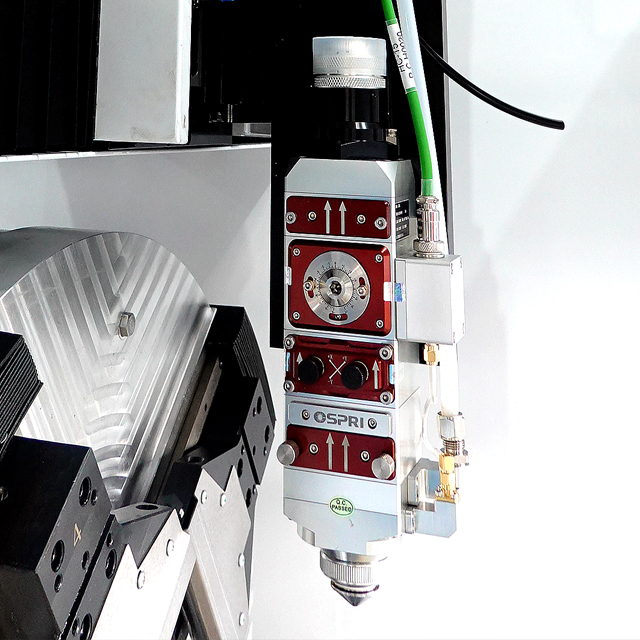

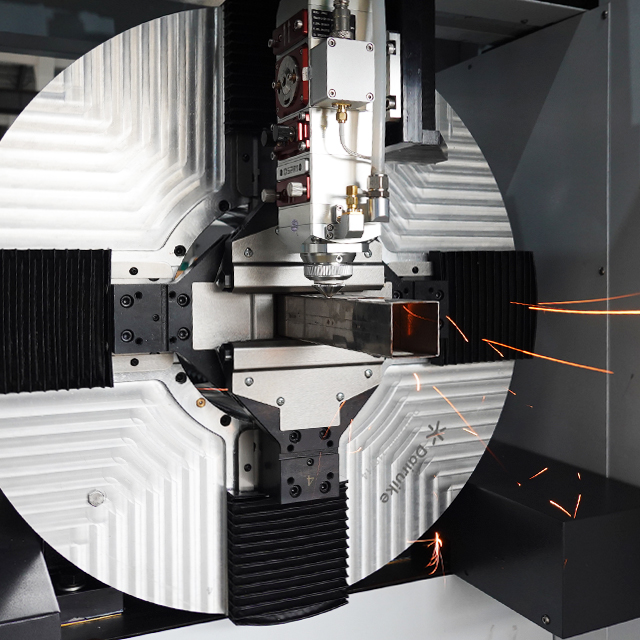

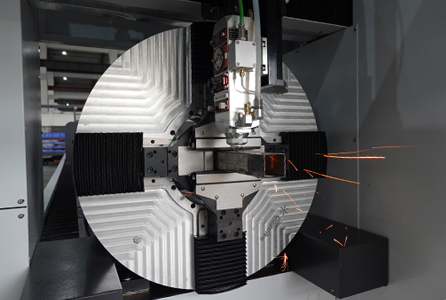

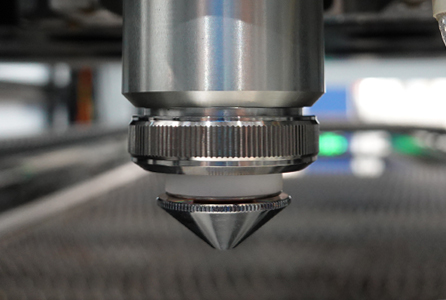

Automatic Sensing Laser Cutting Head

High idle running acceleration, fast cutting response, and corners are not easy to burn, and the cutting head will not contact the
material surface to ensure the perfection of the workpiece.

Horizontal Gantry Structure

Gear rack and screw combined transmission mode can obtain high stability, good rigidity, light weight and high dynamic response

Technique1、The shortest tail material is 110mm

2、Very low operation and maintenance costs

3、The laser cutting head will not contact the material surface and will not scratch the workpiece

4、The front chuck maintains the full stroke without changing the claw

5、High speed idle stroke, high acceleration, fast cutting response, not easy to burn corners

6、The rear chuck vacuums at the rear and the front chuck vacuums at the side. The tube wall is cleaner
and there is less cutting dust and smoke

7、The height of the feeding fixed support wheel can be adjusted manually, and the blanking is a
combination of follow-up support and slope sliding

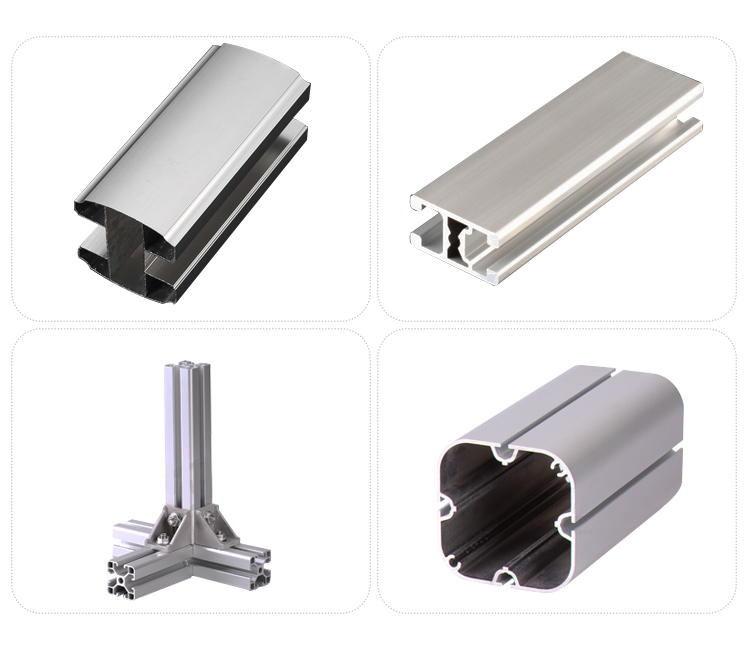

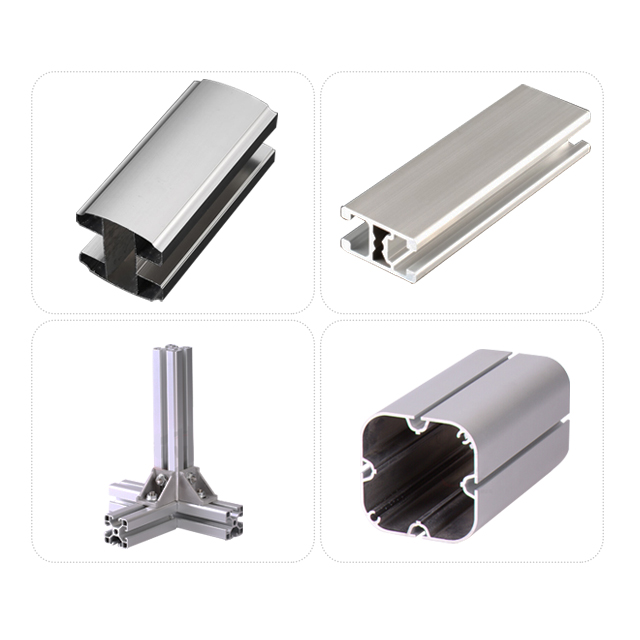

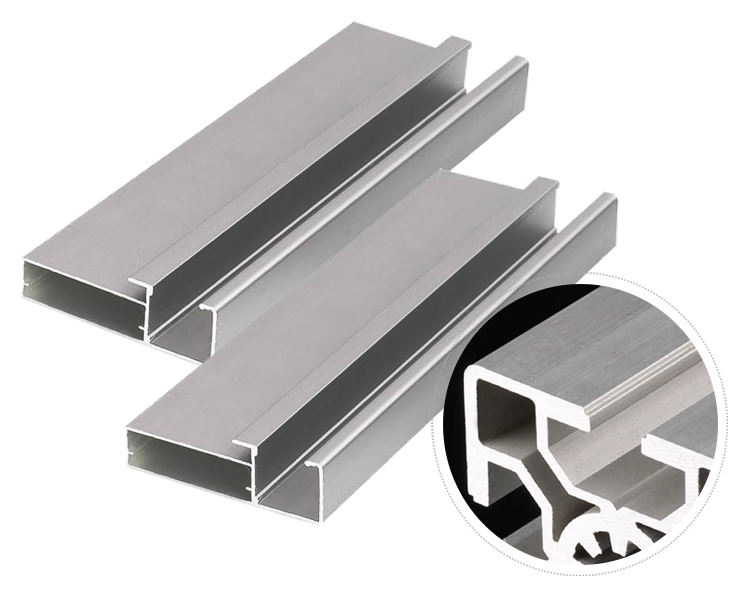

8、High-speed and high-quality laser cutting can be performed on various profiles such as round pipe, square pipe, rectangular
pipe, waist round pipe, angle steel and C-section steel

9、The pipe cutting section is smooth without burr, slag, blackening and yellowing, which can easily
realize the cutting of various complex graphics

Applicable Industry

automobile

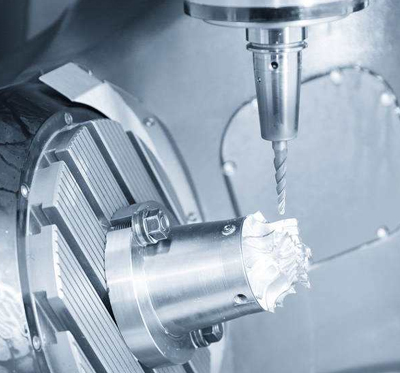

machining

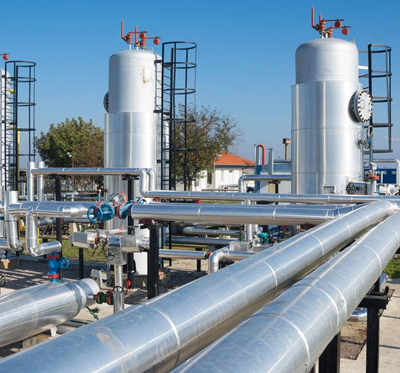

oil pipeline

building steel structure

fitness equipment

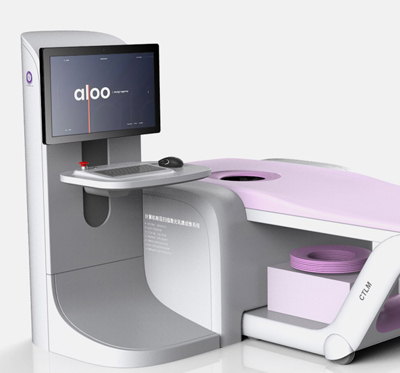

Medical Equipent

---Pre-Sales Service

① Free pre-sales 7*24 hours rapid response services / cousulting
② Free sample testing / inspection
③ Free design of fixtures as customers / distributor required
④ Strict quality control for our products
⑤ Quick delivery time

---After-sales Services
① 2 year guarantee for laser source(people damaged are charged)
② Full technical support / by e-mail, call and video
③ Spare parts supply.
④ Free online training installation and operation
⑤ 12 hours quick feedback & after-sales services
⑥ ODM/OEM service

FAQ

1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

 2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

 3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

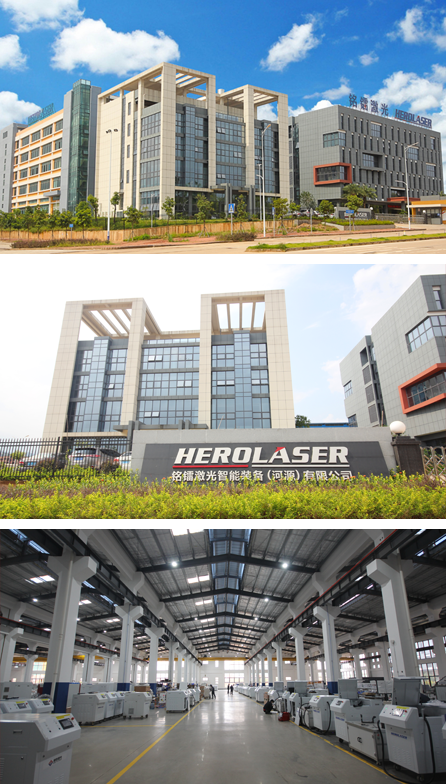

 4. Can I visit the factory?
Available to have a visit to our factory at any time.

 5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7.How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

 8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.

10.How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.

Serial number	project	parameter
One	Equipment model	ML3015B
Two	Laser wavelength	1070nm
Three	Maximum output power	500W-3000W
Four	Effective cutting range	3000mm×1500mm
Five	Cutting thickness	Apparent laser power and material
Six	Cutting speed	Apparent laser power and material
Seven	Positioning accuracy of worktable	≤±0.05mm
Eight	Electricity demand	AC380V ± 5％/ 50Hz
Nine	Power consumption of the whole machine	≤7.5KW
Ten	Cabinet size	7750mm2600mm2170mm
Eleven	Load bearing of machine tool	800KG
